Areco C-Z Purlins

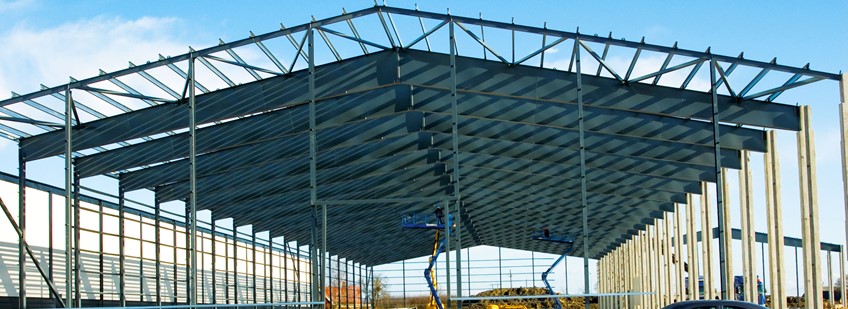

• Areco C-/Z-profiles combine light weight with strength in roofs and facades.

• Purlins’ high suppport-capacity enables to increase the distance between the cores.

• They are designed to fit the most common dimensions of insulations.

• On request the mounting bolt can be pre-punched during production.

• Areco C-/ Z-profiles are available in galvanized S350 quality and in thicknesses 1,20 / 1,50 / 2,00 and 2,50 mm.

---

Dimensions (h):	120 - 250 mm
Thickness:	1,20 - 2,50 mm
Tolerances
Length:	+15 /-5 mm
Profile height (h):	+2/-2 %
a-flange width:	+2/-1 mm
c-flange width:	+1/-1 mm
Edge stiffener width (d):	+4 mm/-5 %
Lateral curvature:	+0.10/-0.15% beam length
Wrapability:	+1/-1 degree per meter
Corner angles:	+3/-3 degree
Radius:	+1/-1 mm

---
