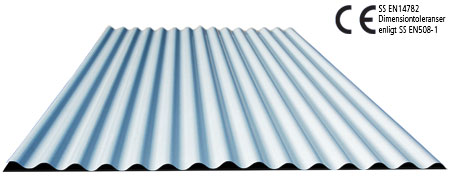

Areco Sinus 18 Wall

Areco Sinus 18 väggplåtAreco Sinus 18 wall profile

• Areco Sinus 18 is a classic and elegant profile with a good covering-width.

• This profile can be mounted either vertically or horizontally.

• Areco Sinus 18 can be produced in lengths up to 11,5 m.


Thickness 0,40 - 0,65 mm
Weight ca 4,5 - 7,0 kg/m2
Length 400 - 11 500 mm
Covering width 1067 mm
Amount of screws/m2 7 st 35 mm self drilling screws
  2 st 23 mm overlap screws
Optional Perforation

Production

Available colors

Polyester
  • White
    AR9010
    0,40|0,50|0,60
  • Black
    AR9005
    0,40|0,50
  • Black
    AR9005
    0,60|0,65
  • Light Grey
    AR7044
    0,50
  • Graphite
    AR7024
    0,50|0,60|0,65
  • Dark Silver
    AR9007
    0,50
  • Silver
    AR9006
    0,50|0,60
  • Yellow
    AR1002
    0,50
  • Beige
    AR1015
    0,50
  • Dark Brown
    AR8017
    0,50
  • Wine Red
    AR0418
    0,50|0,60
  • Coral Red
    AR3013
    0,50
  • Brick Red
    AR8004
    0,50|0,60
  • Forest Green
    AR6003
    0,50
  • Dark Green
    AR6020
    0,50
  • Blue
    AR5001
    0,50
  • Dove Gray
    AR7038
    0,50
Karat
  • Black
    AR9005
    0,50|0,60
  • White
    AR9002
    0,60
  • Dark Silver
    AR9007
    0,60
  • Silver
    AR9006
    0,60
  • Dark Grey
    AR7011
    0,60
  • Brick Red
    AR8004
    0,60
Alu-zinc
  • Alu-zinc
    AR0185
    0,50|0,60
