Sandwich Panels

Areco has a wide range of Sandwich panels with either Mineral wool (MW), Polyurethane (PIR). The panel system is primarily for external use of wall and roofing constructions but can also be used as interior material. The wide range of different profiles and colors, increases the variation possibilities for a very differentiated appearance.

---

Areco Spirit Panel - MW Wall panels

• Mineral wool core, A2-s1, d0

• High fire resistance EI240

• Excellent thermal and sound insulation

• Lengths: 910 – 12,000 mm

• Covering width: 1200 mm

• Thicknesses: 100 – 300 mm

• Intrusion protection according to protection class 2

• Quick deliveries

• Technical support during the entire construction period

---

Surface material	Steel S280–S320
Insulation material:	Mineral Wool (MW)
Surface coating:	PE and PVDF as standard. Karat and other special coatings available as custom order.
Colour:	RAL-colours (see product broschure)
Pattern:	Smooth surface Shadow groove 150, 200, 600 Profiling S50 Microprofiling M10, M15 Perforated interior/exterior
Covering width:	1200 mm

---

Thickness (mm)	Uc value (W/m2K)	Weight (kg/m2)	Fire Resistance
100	0,38	~20	EI120
120	0,31	~22	EI120
150	0,26	~25	EI120
175	0,22	~28	EI120
200	0,20	~31	EI120
240	0,16	~35	EI240
300	0,13	~41	EI240

---

Warranty MW

Areco provides an object-specific warranty for its sandwich panels based on the local conditions and selected product properties for the object.

---

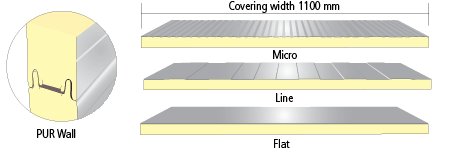

PIR Wall

Polyuretan (PIR) with its good properties creates a microporous hydrophobic coating that breathes. It has a good insulation capacity.

Thickness (mm)	Uc value (W/m2K)	Weight (kg/m2)
40	0,55	10,26
50	0,44	10,58
60	0,37	11,08
80	0,28	11,79
100	0,22	12,60
120	0,19	13,40
160	0,14	15,00
180	0,12	15,80
200	0,10	16,80

---

PIR Roof

Thickness (mm)	Uc value (W/m2K)	Weight (kg/m2)
40	0,50	10,84
60	0,35	11,65
80	0,27	12,45
100	0,22	13,26
120	0,18	14,10

---
