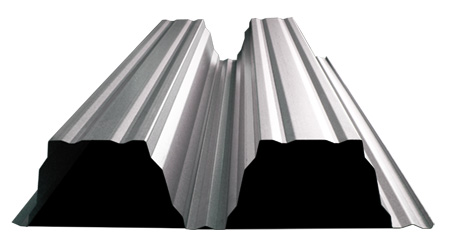

Areco TP 200 High Profile

Areco TP200 HögprofilAreco TP200 Högprofil

• Large spans, up to 14 m

• Higher snow zones

• Excellent covering width despite its height

• Sheet thickness up to 1.50 mm

• Areco TP200 is available in either Alu-zinc or white interior polyester and black polyester

• The profile has a low weight, making installation simple


Sheet thickness 0.70 | 0.80 | 0.90 | 1.00 | 1.20 | 1.50 mm
Weight approx. 8.4–18 kg/m
Length 400 - 18,000 mm
Covering width (TB) 854 mm
Number of screws/m2 End support – 2x self-tapping screws in the bottom of each profile
  Intermediate support, end overlap – 1x self-tapping screw in the bottom of each profile

Production

Available colors

Polyester
  • White
    AR9002
    0,70|0,80
  • White
    AR9002
    0,90|1,00
  • White
    AR9002
    1,20|1,50
Alu-zinc
  • Alu-zinc
    AR0150
    0,70|0,80
  • Alu-zinc
    AR0150
    0,90|1,00
  • Alu-zinc
    AR0150
    1,20|1,50
