Plane Sheet

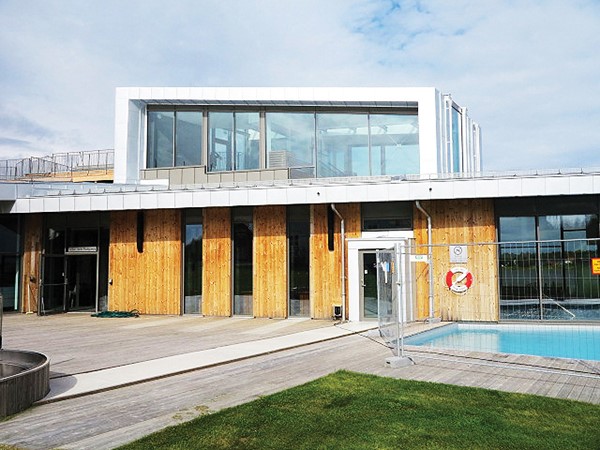

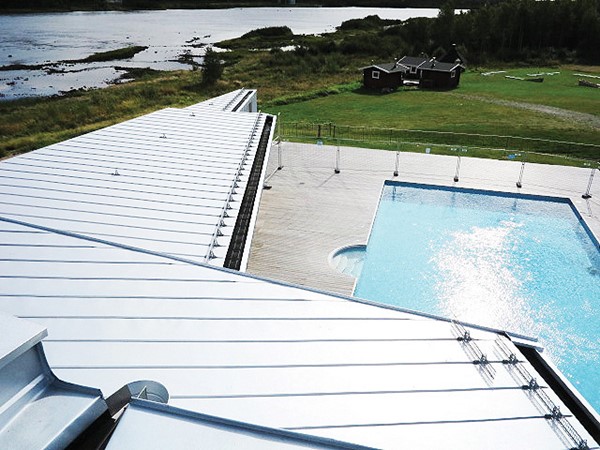

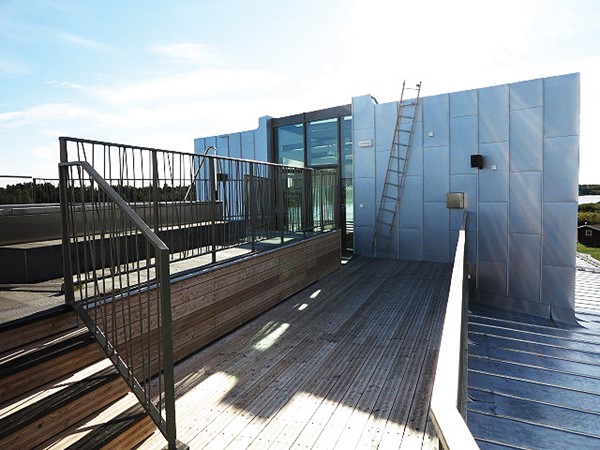

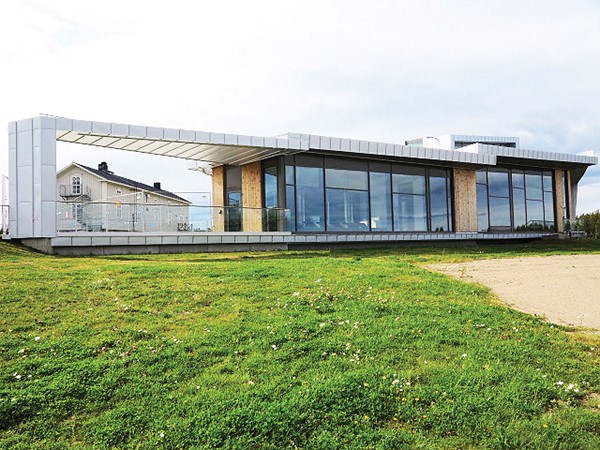

Plane sheet is a timeless, bendable and exclusive roofing material. In the hands of a sheet metal worker it becomes a stunning roof on buildings where the material’s flexiblity, high quality and appearance is of utmost importance. Plane sheet roof has a classic style that fits both 18th century houses as well as contemporary ones.

Areco plain sheet is a colour coated hot-dipped galvanized sheet metal in two qualities:

• PLX Coils - flexible, extra soft quality for sheet metal works
• FAP Coils, Sheets - standard quality for manufacturing fittings

---

Specifications
Thickness	0,60
PLX	250 kg coils
FAP	500/1000 kg coils/sheets

---

Assortment

FAP-sheets	Coating	Dimension	Thickness (mm)
Polyester 1230	Polyester	1230 x 2000 mm	0,40
Polyester 1230	Polyester	1230 x 2000 mm	0,50
Polyester 1230	Polyester	1230 x 2000 mm	0,60
Matt Polyester 1250	Mattpolyester	1250 x 2000 mm	0,50
KARAT 1250	KARAT	1250 x 2000 mm	0,50
Alu-zinc	AZ185	1250 x 2000 mm	0,50

---

FAP-sheets	Coating	Dimension	Thickness (mm)
FAP KARAT 1250	KARAT	1250 x 2000 mm	0,60
FAP Alu-zinc	AZ185	1250 x 2000 mm	0,60
FAP GreenCoat 1250	GreenCoat	1250 x 2000 mm	0,60

---

Coil/FAP/PLX	Coating	Dimension	Thickness (mm)
Coil FAP 500 kg	KARAT	1250 x mm	0,60
Coil FAP 1000 kg	KARAT	1250 x mm	0,60
Coil FAP Alu-zinc 500 kg	AZ185	1250 x mm	0,60
Coil FAP Alu-zinc 1000 kg	AZ185	1250 x mm	0,60
Coil PLX GreenCoat 250 kg	GreenCoat	670 x mm	0,60
Coil FAP GreenCoat 500 kg	GreenCoat	1250 x mm	0,60
Coil FAP GreenCoat	GreenCoat	1250 x mm	0,60

---

GreenCoat Coating

• Polyester coating of 36 μm
• Very good gloss and colour fastness
• Extra corrosion protection
• Environmentally friendly
• Maintenance friendly
• 30-year warranty
