Areco TP45 Roof

Areco TP45 Takplåt

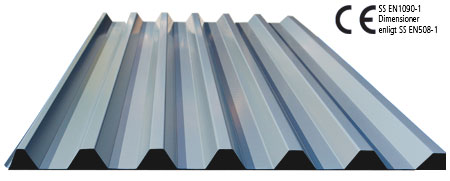

Areco TP45

• Areco TP45 is a traditional profile used in stock-buildings.

• It combines a wide covering range with a high bearing capacity.

• A joining distance of 2 m can be achieved already with 0,5 mm sheet thickness because of the design of this profile.

• In our production facility, we can manufacture the sheet with the Arcond anti-condensation blanket.

• Areco TP45 can be produced in lengths up to 11.5 m.


Thickness 0,50 - 0,65 mm
Weight ca 4,5 - 7,0 kg/m2
Length 400 - 11 500 mm
Covering width 900 mm
Amount of screws/m2 5 pcs 35 mm self drilling screws
  2 pcs 23 mm overlap screws
Optional Arcond condensation protection

Production

Available colors

POLYESTER
  • White
    AR9010
    0,50|0,60
  • Black
    AR9005
    0,50|0,60|0,65
  • Light Grey
    AR7044
    0,50
  • Graphite
    AR7024
    0,50|0,60|0,65
  • Dark Silver
    AR9007
    0,60
  • Silver
    AR9006
    0,50|0,60
  • Yellow
    AR1002
    0,50
  • Beige
    AR1015
    0,50
  • Dark Brown
    AR8017
    0,50
  • Wine Red
    AR0418
    0,50|0,60
  • Coral Red
    AR3013
    0,50
  • Brick Red
    AR8004
    0,50|0,60
  • Forest Green
    AR6003
    0,50
  • Dark Green
    AR6020
    0,50
  • Blue
    AR5001
    0,50
  • Dove Gray
    AR7038
    0,50
KARAT | GREENCOAT
  • White
    AR9002
    0,60
  • Black
    AR9005
    0,50|0,60
  • Dark Silver
    AR9007
    0,60
  • Silver
    AR9006
    0,60
  • Anthracite
    AR7011
    0,60
  • Red
    AR0758
    0,60
  • Brick Red
    AR8004
    0,60
  • Patina Green
    AR6021
    0,60
  • Zinc Gray
    AR7040
    0,60
ALU-ZINC
  • Alu-zinc
    AR0185
    0,50|0,60
