Areco TP20 Roof

Areco TP20 Takplåt

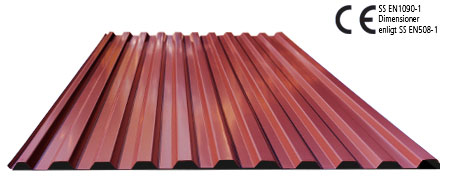

Areco TP20

• This traditional profile combines good covering width and good buoyancy.

• Areco TP20 is equilateral and is well suited for both walls and roofs.

• The profile can also be produced with Arcond anti-condensation blanket.

• TP20 is available in lengths from 40 cm up to 11.5 m.


Thickness 0,40 - 0,65 mm
Weight ca 4,5 - 7,0 kg/m2
Length 400 - 11 500 mm
Covering width 1 000 mm
Amount of screws/m2 6 pcs 35 mm self drilling screws
  2 pcs 23 mm overlap screws
Optional Arcond condensation protection

Production

Available colors

POLYESTER
  • White
    AR9010
    0,40|0,50|0,60
  • Black
    AR9005
    0,40|0,50
  • Black
    AR9005
    0,60|0,65
  • Light Grey
    AR7044
    0,50
  • Graphite
    AR7024
    0,50|0,60|0,65
  • Dark Silver
    AR9007
    0,50
  • Silver
    AR9006
    0,50|0,60
  • Yellow
    AR1002
    0,50
  • Beige
    AR1015
    0,50
  • Dark Brown
    AR8017
    0,50
  • Wine Red
    AR0418
    0,50|0,60
  • Coral Red
    AR3013
    0,50
  • Brick Red
    AR8004
    0,50|0,60
  • Forest Green
    AR6003
    0,50
  • Dark Green
    AR6020
    0,50
  • Blue
    AR5001
    0,50
  • Dove Gray
    AR7038
    0,50
KARAT
  • Black
    AR9005
    0,50
ALU-ZINC
  • Alu-zinc
    AR0185
    0,50|0,60
