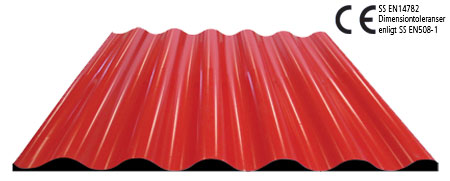

Areco Sinus 45 Roof

Areco Sinus 45 takplåtAreco Sinus 45 takplåt

• Areco Sinus 45 is an exclusive profile with a classic design.

• The profile can be produced in lengths up to 11.5 m.


Thickness 0,60 - 0,65 mm
Weight ca 4,5 - 7,0 kg/m2
Length 400 - 11 500 mm
Covering width 900 mm
Amount of screws/m2 7 st 35 mm self drilling screws
  2 st 23 mm overlap screws

Production

Available colors

POLYESTER
  • White
    AR9010
    0,60
  • Black
    AR9005
    0,60|0,65
  • Graphite
    AR7024
    0,60|0,65
  • Dark Silver
    AR9007
    0,60
  • Silver
    AR9006
    0,60
  • Wine Red
    AR0418
    0,60
  • Brick Red
    AR8004
    0,60
KARAT | GREENCOAT
  • White
    AR9002
    0,60
  • Black
    AR9005
    0,60
  • Dark Silver
    AR9007
    0,60
  • Silver
    AR9006
    0,60
  • Anthracite
    AR7011
    0,60
  • Red
    AR0758
    0,60
  • Brick Red
    AR8004
    0,60
  • Patina Green
    AR6021
    0,60
  • Zinc Gray
    AR7040
    0,60
ALU-ZINC
  • Alu-zinc
    AR0185
    0,60
